Products > Mowers > 615SL MAX

615SL MAX

The BCS 615 SL Max mowers have a gearbox with two forward and two reverse speeds and a quick reverser to change the forwarding direction.

You may choose from two types of gasoline engine:
Honda GP160, 5 hp or Honda GX270, 9 hp.

The cutter bars available for the 615 SL Max have a working width of cm. 80, 100, 115 and 135 in the “Laser” version and cm. 115 in the middle cut fingers versions.

Equipped with a differential with lock which allows a better maneuverability, the motor mowers 615 SL Max can be used in a versatile way for many maintenance operations and in any type of ground.

Engines

Engine Fuel Starter Power HP
Honda GP160 Gasoline Recoil 5
Honda GX270 Gasoline Recoil 9



Dimensions

dimensions Width min / max (without attachment):

  • with wheels 16x6.50-8:  566 mm



Technical features

  • No. of speeds FWD/REV: 2 + 2
  • Quick reverser: yes
  • Clutch: self-ventilating conic clutch
  • Differential with lock: yes
  • PTO: independent at 990 rpm with engagement in oil bath
  • Brake: no
  • Driving position with height and side adjustable handlebar mounted on shock absorbers to reduce vibrations
  • Weight with GX270 engine, 16x6.50-8 wheels, oil bath transmission and cm. 115 cutter bar: kg. 112

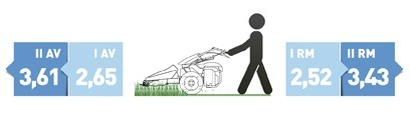

  • Graph of the speeds in km/h with 16x6.50-8 tyres
