Products > Tractors > Invictus K300 | K400 RS

Invictus K300 | K400 RS

Isodiametric tractors, monodirectional, with steering wheels. 26 or 35.6 HP

Invictus K300 | K400 RS are new design tractors produced to satisfy the requirements of hobby-farmers and small farms specialised in growing in greenhouses, nurseries, small rows of vines and poultry holdings.

Compactness, maneuverability and limited weight allow the  Invictus K300 | K400 RS to work in complete safety both on flat and uneven, sloping grounds.

The double ellipsoidal lights integrated in the bonnet give the tractor a particularly refined look.

Two Kubota engines are available for the Invictus: a 26 HP three cylinder engine (Invictus K300) and a 35.6 HP four cylinder engine (Invictus K400), both with indirect injection and natural aspiration.


Model Power KW/HP Nominal speed (rpm) No. of cylinders Displacement (cm3) Aspiration Maximum torque (Nm/rpm)
Invictus K300 19.1 / 26 3000 3 1123 Natural 70.4 / 2200
Invictus K400 26.2 / 35.6 3000 4 1498 Natural 96.5 / 2200

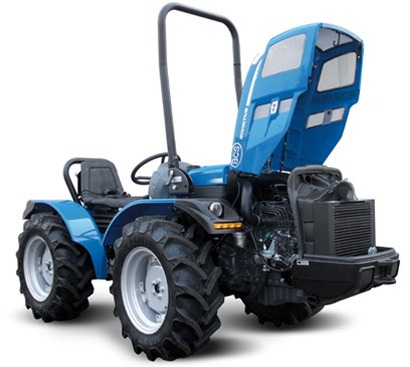

Transmission and gearbox

transmission and gearbox

The transmission of Invictus K300 | K400 is fitted with the OS-FRAME chassis. A joint in the middle of the machine lets the front axle oscillate up to 15° with respect to the rear axle, for excellent stability on slopes and maximum traction.

The gearbox with easy gear engagement has 8 forward and 4 reverse speeds, without speed overlapping.

The dry single disc clutch grants gentle and immediate gear connection.

The distribution of the weights on the axles, 40% on the rear and 60% on the front, is proved optimal once the rear lifting equipment is mounted. The rear load optimises the sharing of the weights on the two tractor axles to increase stability and safety.

The permanent 4-wheel drive allows exploiting the machine’s towing feature.

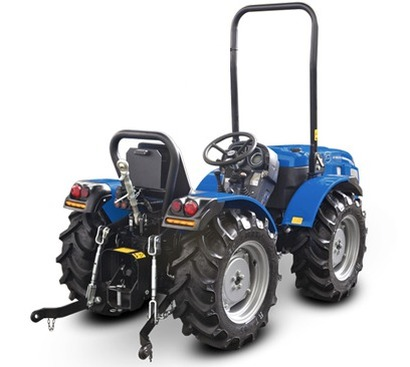

Pto and hydraulic system

pto and hydraulic system

The rear power take-off is at 540 rpm with mechanically engaged and disengaged. It can be standard or synchronised with the gearbox for operating self-propelled trailers.

As an optional, Invictus K400 RS can be equipped with 540 rpm independent rear PTO, synchronised with the gearbox, multi-disc oil bath clutch and electro-hydraulic control on the dashboard.

The rear hydraulic lift by rams is set up with a cat. 1 three point connection, complete with stabilisers to restrict the equipment spinning laterally. The two lower arms of the lift are fixed and their vertical tie rods can be manually adjusted, like the third point tie rod.

The hydraulic system has a gear hydraulic pump with flow rate of 16.5 l/min and max. pressure of 125 bar supplying the steering system, the rear lift and the remote control valves.


Active and passive safety

Active and passive safety

The efficient service brakes, drum type acting on the front wheels, guarantee modular and completely safe braking.

Front and rear differential lock, mechanically controlled, allows the tractor to be always in traction.

The roll-bar and the safety belts on the seat protect the operator.


Driving position

driving position

The driving position is custom-fitted on the driver with ergonomic controls placed to be easily found and activated by the operator.

The gear levers are positioned beneath the dashboard for maximum driving position accessibility.

The hydrostatic steering ensures maximum maneuverability and low turning radii.
