Strike 35

Compact and multifunctional tractor for hobby farmers and small farms.

The new range of BCS compact tractors is designed to meet the needs of hobby farmers, advanced enthusiasts, and small-scale farmers.

Strike 35 is a compact, agile and multifunctional tractor, ideal for operating within small farms and in environments where maneuverability and versatility are essential.

The easy access to the driving position, the spacious platform with generous room for feet and knees, and the ergonomic, intuitive controls ensure driving comfort and ease of use.

The hydraulic system with independent pumps, combined with a robust three-point hitch, allows the use of numerous agricultural implements for greater productivity and efficiency.

Application areas

Thanks to its maneuverability and compact dimensions, Strike 35 is suitable for a wide range of agricultural applications:

• Horticulture and fruit growing
  Light soil cultivation, seedbed preparation, hoeing and management of vegetable crops in confined spaces.
• Small vineyards and orchards
  Handling operations, crop protection treatments, grass mulching and inter-row maintenance.
• Nurseries and floriculture
  Precision work, handling of plants and materials, use in greenhouses or areas with narrow passages.
• Small farms and hobby/professional farming
  Daily operations, light transport and overall farm management.
• Green maintenance
  Mowing, mulching, cleaning of ditches and field edges, maintenance of farm roads.
• Small livestock farms
  Cleaning of stables and pens, feed distribution and internal handling.

Engine

Technical Features

• Type: Compact DT
• Chassis: Rigid with steering wheels
• Driving Position: Monodirectional
• Transmission: 9 + 3
• Drive: 4WD with front-wheel drive disengagement
• Hydraulic system: dual circuit with independent pumps
• Joystick: not available
• Rear lifting capacity (kg): 750 (at ball joint)
• Front lift: not available
• PTO rotation speed (rpm): 540 / 540E
• PTO engagement control: mechanical
• Service brakes: multidisc in oil bath, acting on the rear wheels. Independent manoeuvring brakes acting on rear wheels
• Cabin: not available

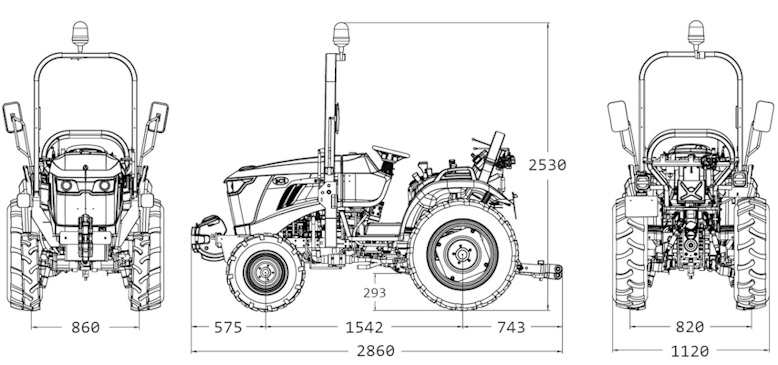

Dimensions and Weight

• Running order weight: 1050 kg

Mechanical transmission

The Strike range is mainly used in applications where manoeuvrability, compact dimensions and operational versatility are more important than sheer power.

The mechanical transmission with 9 forward and 3 reverse gears is an indispensable ally in several operating conditions:

• with implements such as rotary tillers, small ploughs, harrows or subsoilers for light soil cultivation;
• during treatments requiring a constant forward speed;
• on hilly terrain where greater traction, efficiency and torque are required.

It also offers an additional advantage thanks to its simple maintenance and low running costs.

Powerfull and efficient 25 hp engine

The 3-cylinder Mitsubishi engine delivering 25 hp, compliant with Stage V emission regulations, stands out for:

• low noise levels
• high reliability
• reduced vibration
• low fuel consumption.

The air intake system is positioned away from heat sources to ensure more efficient and longer-lasting engine operation.

The hood opening system provides full access to the engine, making routine maintenance operations easier.

Comfort and safety

Strike 35 offers several features that make operation pleasant and safe:

• Wide platform and grab handles on the fenders for comfortable and safe access to the driving position.
• Low-profile hood for improved front visibility.
• Front driving lights for greater safety both on the road and in the field.
• LED position and direction lights for enhanced visibility and safety.
• Foldable front rollover protection structure that folows the hood profile to reduce overall height
• Rear-view mirrors mounted on the rollover bar that fold together with it
• Oil-immersed multi-disc brakes ensuring excellent braking performance and long-term reliability.
• Logically and intuitively positioned levers for forward motion and hydraulic control.

High performance

The reinforced front axle features a double-acting through-rod steering cylinder with protective guards, ensuring increased reliability and robustness.

In combination with hydrostatic steering, this system provides symmetrical steering for more precise manoeuvres and improved tractor manoeuvrability.

The rear lift, with draft and position control, is equipped with a robust and reliable three-point hitch with a lifting capacity of 750 kg.

The hydraulic system consists of two independent pumps:

• one pump dedicated to the rear lift and the two hydraulic outlets;
• one pump dedicated to hydrostatic steering.

Additional options

• Front ballast weights with a total weight of 55 kg, including an integrated towing hook
• Agricultural or Garden tyres: Tyres with Tractor or low-compaction Garden tread patterns, available with fixed or adjustable rims.
