Strike 35 HY

Compact hydrostatic tractor for hobby farmers and green maintenance professionals.

The new Strike compact tractor range is designed to meet the needs of hobby farmers, small-scale farmers and green maintenance professionals.

Strike 35 HY is a compact hydrostatic tractor that is agile and versatile, ideal for operations involving frequent manoeuvres and use in confined spaces.

Thanks to easy access to the driving position, a wide platform with ample space for feet and knees, and ergonomic, intuitive controls, Strike 35 HY ensures ease of use and a high level of driving comfort, even during long working sessions.

Continuously adjustable travel speed and immediate direction reversal via pedal significantly improve productivity, making the tractor extremely practical and efficient.

Application areas

• Green maintenance
  Mowing, shredding, cleaning ditches and field edges, maintenance of public and private green areas.
• Small-scale farms
  Internal handling, light transport and daily farm management.
• Nurseries and floriculture
  Precision work, handling of plants and materials, use in greenhouses and narrow passages.
• Narrow rows
  Operations in vineyards and orchards requiring slow, precise and constant forward speed.

Engine

Technical Features

• Type: Compact DT
• Chassis: Rigid with steering wheels
• Driving Position: Monodirectional
• Transmission: Hydrostatic (low-medium-high)
• Drive: 4WD with front-wheel drive disengagement
• Hydraulic system: dual circuit with independent pumps
• Joystick: not available
• Rear lifting capacity (kg): 750 (at ball joint)
• Front lift: not available
• PTO rotation speed (rpm): 540 / 540E
• PTO engagement control: mechanical
• Service brakes: multidisc in oil bath, acting on the rear wheels. Independent manoeuvring brakes acting on rear wheels
• Cabin: not available

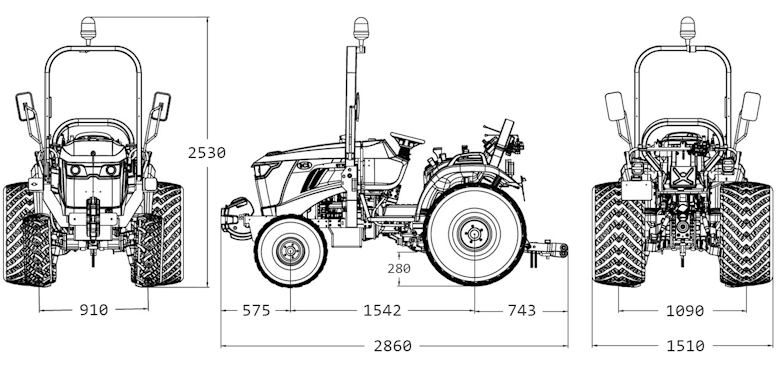

Dimensions and Weight

• Running order weight: 1100 kg

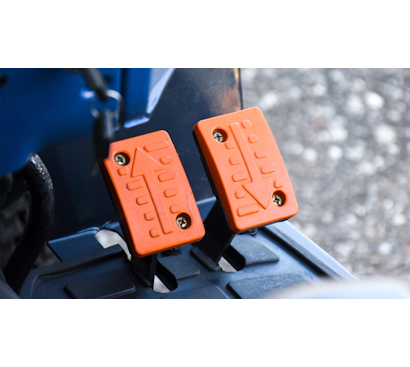

HY | Hydrostatic transmission

The three-range hydrostatic transmission (low, medium and high), with quick direction reversal via pedal, is an ideal solution:

• when maximum precision in speed control is required without using the clutch;
• during intensive work with frequent manoeuvres and continuous direction changes;
• iin confined spaces or close to obstacles.

The hydrostatic transmission also ensures ease of use, comfort and safety, making it ideal even for less experienced operators.

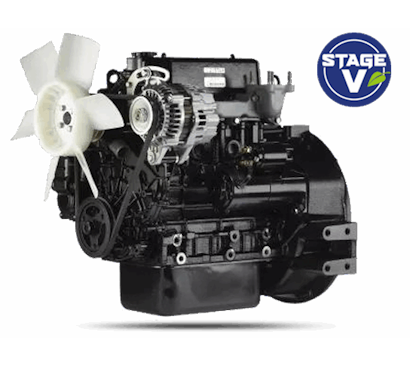

Powerfull and efficient 25 hp engine

The 3-cylinder Mitsubishi engine delivering 25 hp, compliant with Stage V emission regulations, stands out for:

• low noise levels
• high reliability
• reduced vibration
• low fuel consumption.

The air intake system is positioned away from heat sources to ensure more efficient and longer-lasting engine operation.

The hood opening system provides full access to the engine, making routine maintenance operations easier.

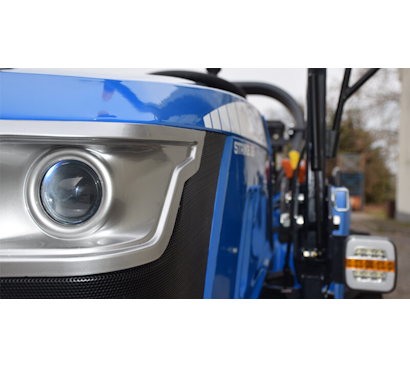

Comfort and safety

Strike 35 HY offers several features that make operation pleasant and safe:

• Wide platform and grab handles on the fenders for comfortable and safe access to the driving position.
• Low-profile hood for improved front visibility.
• Front driving lights for greater safety both on the road and in the field.
• LED position and direction lights for enhanced visibility and safety.
• Foldable front rollover protection structure that folows the hood profile to reduce overall height
• Rear-view mirrors mounted on the rollover bar that fold together with it
• Oil-immersed multi-disc brakes ensuring excellent braking performance and long-term reliability.
• Logically and intuitively positioned levers for forward motion and hydraulic control.

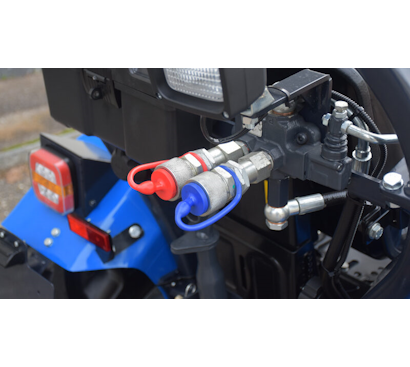

High performance and efficient hydraulic system

The reinforced front axle features a double-acting through-rod steering cylinder with protective guards, ensuring increased reliability and robustness.

In combination with hydrostatic steering, this system provides symmetrical steering for more precise manoeuvres and improved tractor manoeuvrability.

The rear lift, with draft and position control, is equipped with a robust and reliable three-point hitch with a lifting capacity of 750 kg.

The hydraulic system consists of two independent pumps:

• one pump dedicated to the rear lift and the two hydraulic outlets;
• one pump dedicated to hydrostatic steering.

Additional options

• Mid PTO: In addition to the standard rear PTO 540/540E, a 2000 rpm mid pto is available
• Front ballast weights with a total weight of 55 kg, including an integrated towing hook
• Agricultural or Garden tyres: Tyres with Tractor or low-compaction Garden tread patterns, available with fixed or adjustable rims.
