740 PowerSafe

The BCS 740 PowerSafe two-wheel tractor has a gearbox with 3 forward and 3 reverse speeds and a quick reverser to change the forwarding direction. The differential with lock is serial.

The handlebar is adjustable and reversible in order to use front and rear attachments.

The engines available for this version are two gasoline engines: Honda GX390, 13 hp or Briggs&Stratton XR2100, 13 hp and a Diesel engine Yanmar LN100, 11 hp.

The 740 PowerSafe has been specifically designed to increase the quality/price ratio. Versatility is still the primary feature of this model and appraises the product whether it is used for farming work or for landscape maintenance.

Engines

Engine Fuel Starter Power HP
Honda GX390 Gasoline Recoil or Electric 13
Briggs&Stratton XR2100 Gasoline Recoil 13
Yanmar LN100 Diesel Recoil or Electric 11



Dimensions & Weights

dimensions and weights Width min / max (without attachment):
  • with wheels 5.0-10: 503 / 575 mm
  • with wheels 6.5/80-12: 668 / 790 mm
  • with steel cage wheels Ø cm 49: 450 mm
Weight (without attachment):
  • with GX390 engine, wheels 5.0-10: 112 kg
  • with GX390 AE engine, wheels 5.0-10: 116 kg
  • with XR2100 engine, wheels 5.0-10: kg
  • with LN100 engine, wheels 5.0-10: 132 kg
  • with LN100 AE engine, wheels 5.0-10: 140 kg



Technical features

  • No. of speeds FWD/REV: 3 + 3
  • Quick reverser: yes
  • Clutch: multi-disc in oil bath PowerSafe
  • Differential with lock: yes
  • PTO: independent at 990 rpm with engagement in oil bath
  • Brake: independent work brake on the two wheels and parking brake
  • Driving position with adjustable and 180° reversible handlebar mounted on shock absorbers to reduce vibrations

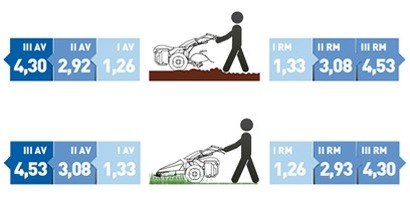

  • Graph of the speeds in km/h with 5.0-10 tyres



PowerSafe

powersafe

The PowerSafe hydraulic clutch ensures several advantages:
  • Performance and Reliability of a hydraulic clutch with no maintenance, even in heavy use with alternating movement tools (cutter bars) or in use at a high inertia level (lawn mower or heavy-duty mower).
  • Safety immediate machine stop due to an integrated automatic brake which stops both the machine and the attachment when releasing the handlebar.
  • Comfort with elimination of preliminary stages for engine starting which runs continuously even when the operator releases the handlebar.
  • Guarantee: the PowerSafe clutch unit has a 5-year extended guarantee.
